Description

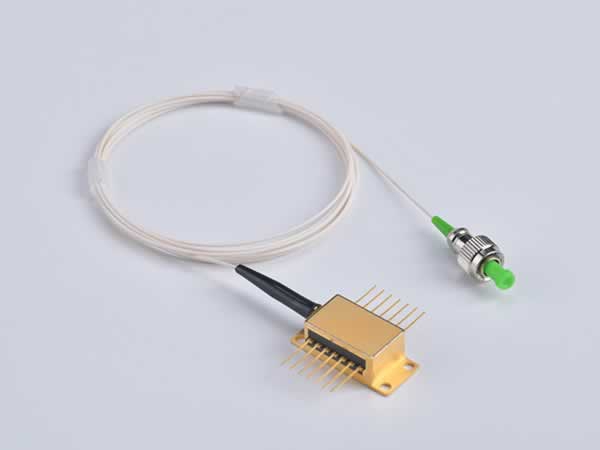

The product is a hermetically sealed BTF device with a 1310nm SLD. The prodcut can be operated under ooled condition.The product is suitable for Fiber Optic Gyroscope, Optical Coherence Tomography,Atomic Force Microscope(AFM), Encoders fields.
Application
Fiber Optic Gyroscope, Optical Coherence Tomography,Atomic Force Microscope(AFM), Encoders,etcs.
Parameter
| Item | Symbol | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| Wavelength | λc | 1290 | 1310 | 1330 | nm | Po=5mw |
| Operation Current | Iop | 100 | 150 | μA | Tc=25℃ | |
| Power | Po | 1 | 1.3 | 3 | mw | I=100mA |
| Spectral Width | Δλ | 40 | 50 | nm | I=100mA | |
| Ripple | R | 0.1 | 0.2 | dB | I=100mA | |
| >Po Rate | 1 | % | Tc=25℃ | |||
| >Po Rate | 1 | % | -45~70℃ |
Outline Diagram
Pin Definitions
| No. | Function | No. | Function |
|---|---|---|---|
| 1 | Cooler anode | 5 | SLD anode |
| 2 | Thermistor | 6 | NC |
| 3 | Thermistor | 7 | NC |
| 4 | SLD anode | 8 | Cooler cathode |
