Description

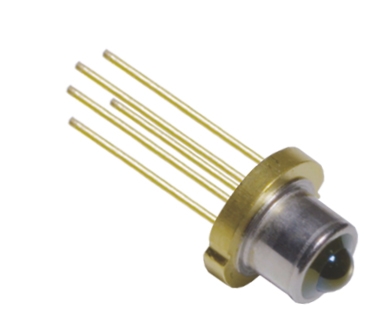

The product is a hermetically sealed TO-56 device with a 1310nm DFB laser diode monitored by a PIN photo-detector. The FP laser diode can be operated under uncooled condition, and directly modulated up to 2.5Gbps.The product is suitable for high speed, high quality fiber communication and data transmission fields
Application
High speed, high performance data communication and telecommunication applications, Ethernet, Fiber channel, GPON
Parameter
| Item | Symbol | Min. | Typ. | Max. | Unit | Condition |
|---|---|---|---|---|---|---|
| Thresold Current | Ith | 15 | mA | Tc=25℃ | ||
| Power | Po | 5 | mw | I=Ith+20mA | ||
| Slope Efficiency | SE | 0.25 | W/A | Tc=25℃ | ||
| Operating Voltage | Vf | 1.1 | 1.6 | V | I=Ith+20mA | |
| Wavelength | λc | 1300 | 1310 | 1320 | nm | Po=5mw |
| Focus Length | F | 6.5 | mm | 2.0mm ball lens |
